Boat Building Gallery: American Custom Yachts

  • Updated: April 3, 2013
66 acy wide 1.jpg
American Custom Yachts recently began construction on a new 66-footer that will incorporate revolutionary construction techniques and a design unlike any other American on the water. Stay tuned for the second part of their gallery coming soon and witness custom boat building continue in the American tradition. Here, the keel and stringers are being fitted on the custom steel jig, computer-designed and plasma-cut to exacting specifications to ensure absolute accuracy.
66 acy wide 2.jpg
The chine is being fitted on the jig.
66 acy wide 3.jpg

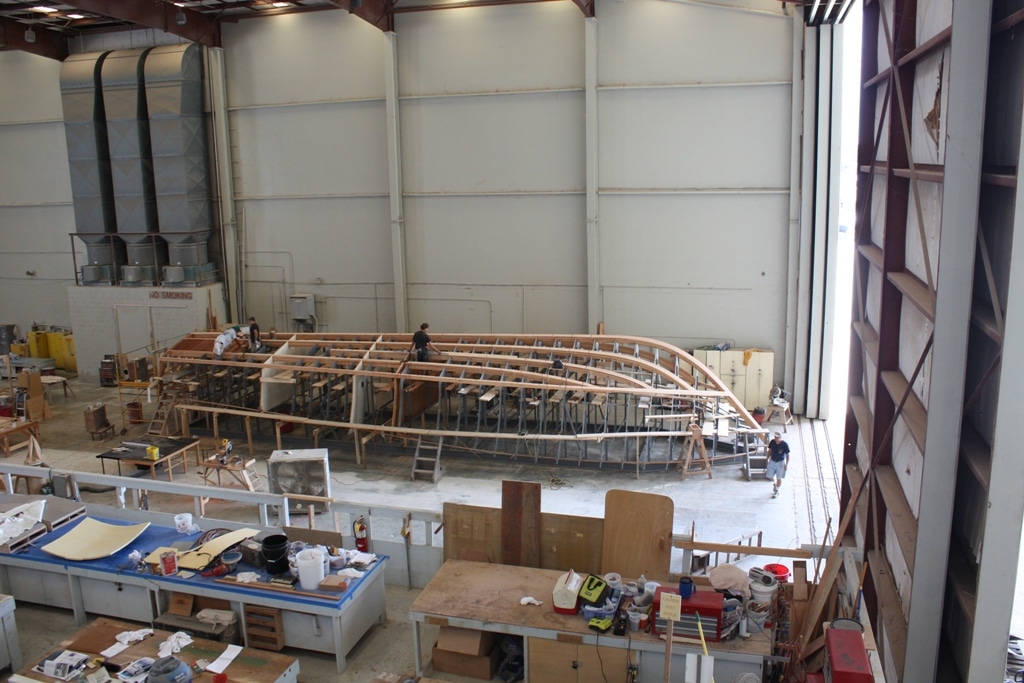

The first layer of bottom planking is applied.
66 acy wide 4.jpg

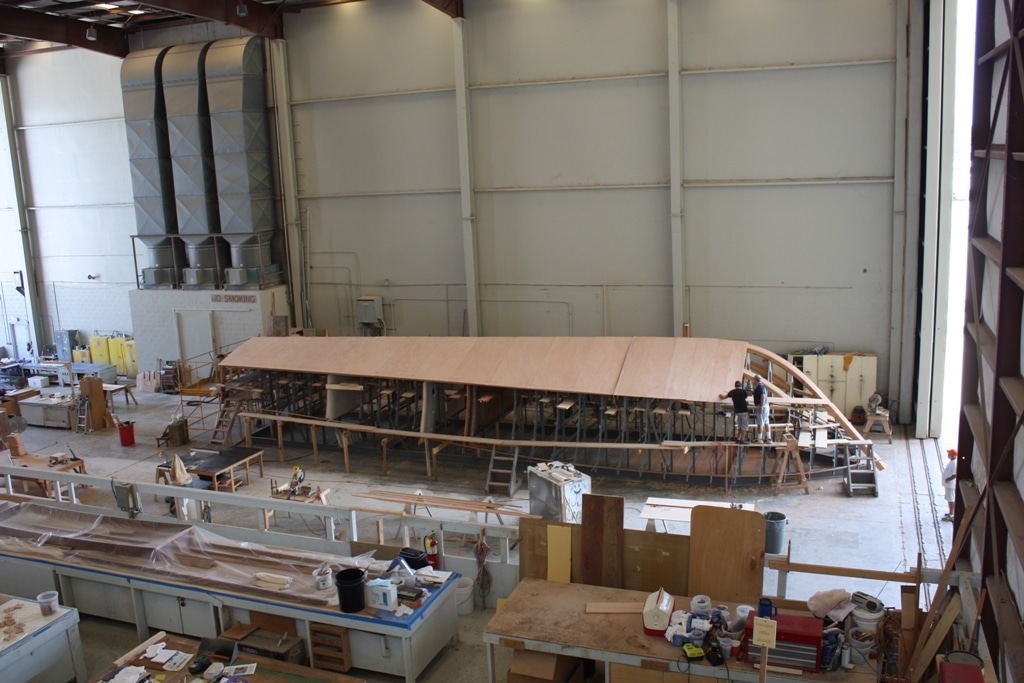

Installation is complete on hull’s three layers of bottom planking.
66 acywide 5.jpg

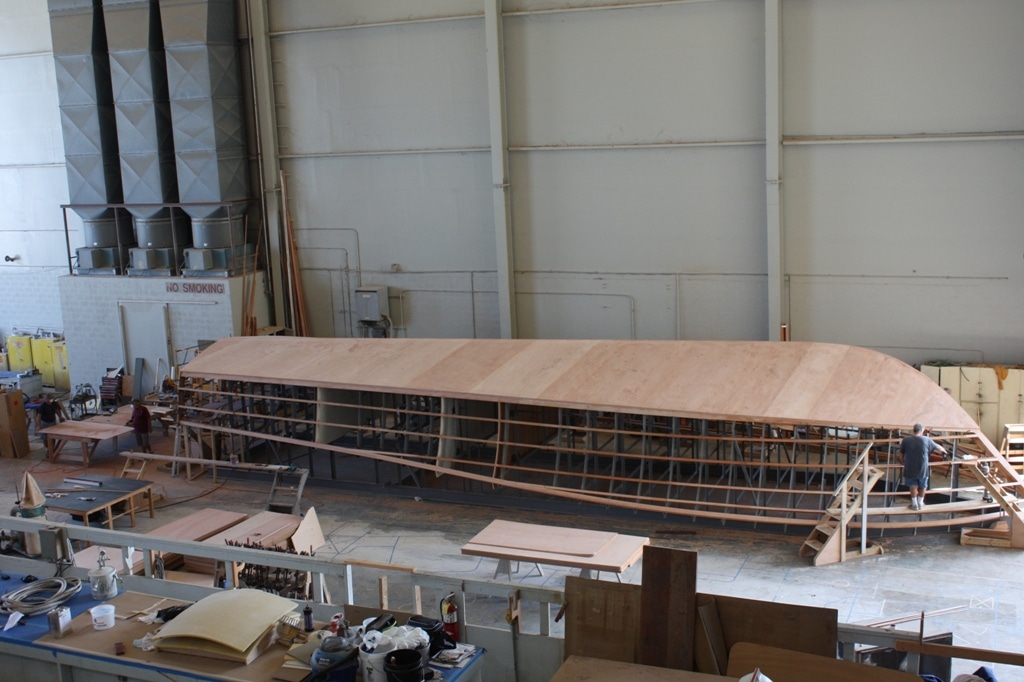

The longitudinal battens and shear line are being shaped in preparation for the planking of the hull sides.
acy 11-15 a.jpg
The hull sides are fully planked and the hull is being prepped for glassing.
acy 11-15 b.jpg

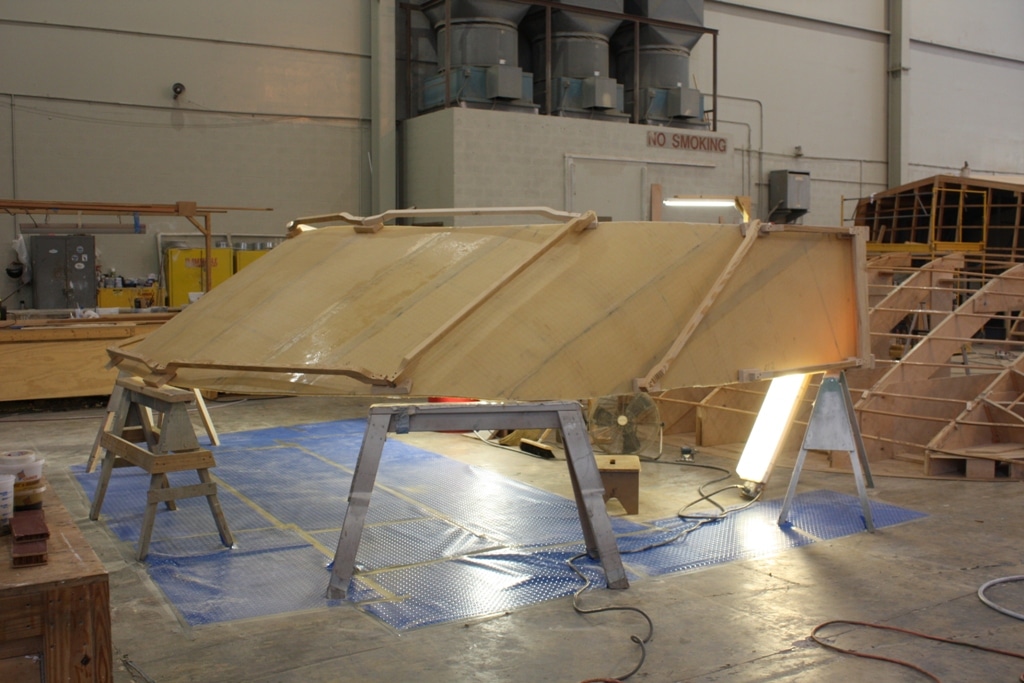

The windshield is glassed and braced.
acy 11-15 c.jpg

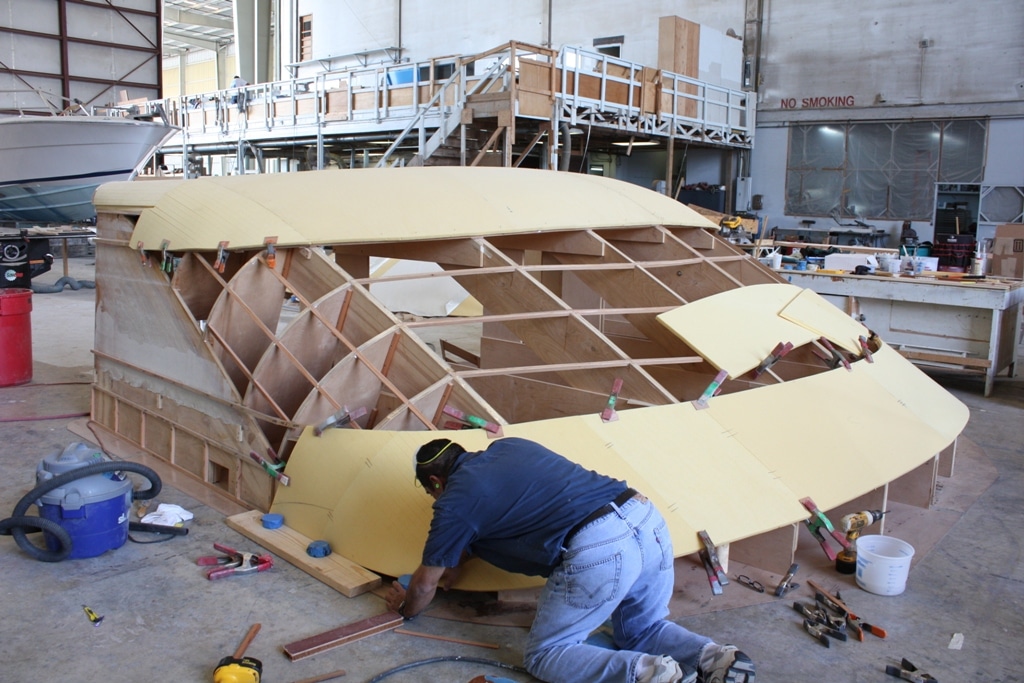

Foam is being fitted to the forward house jig.

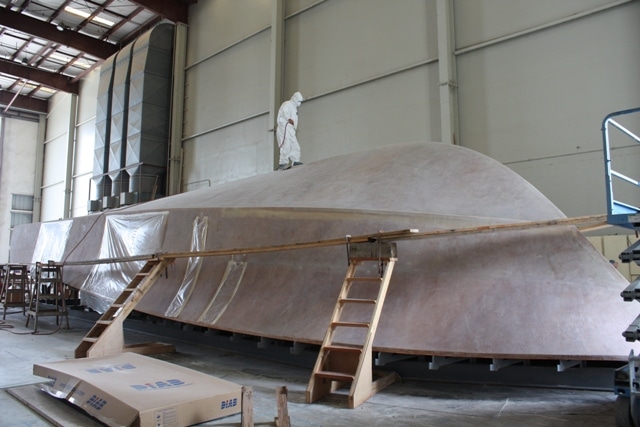

The hull is fully glassed and being prepped for glazing and fairing.

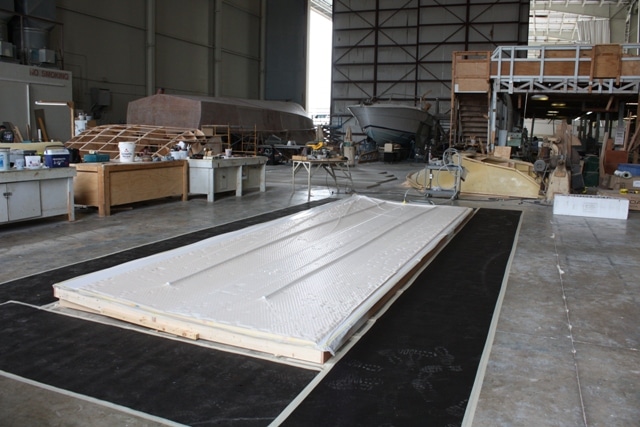

The house sides are vacuum bagged while the bridge construction continues on the shop floor.

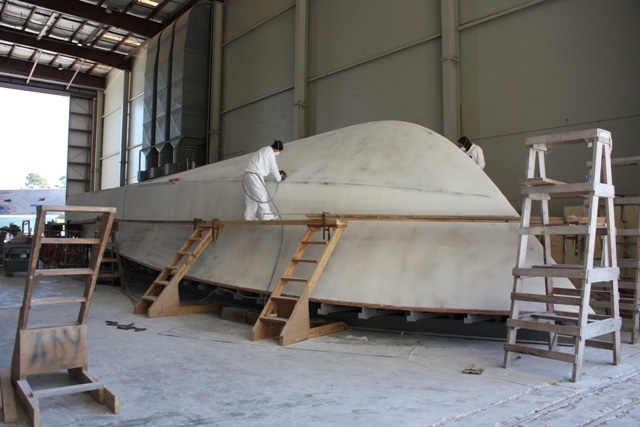

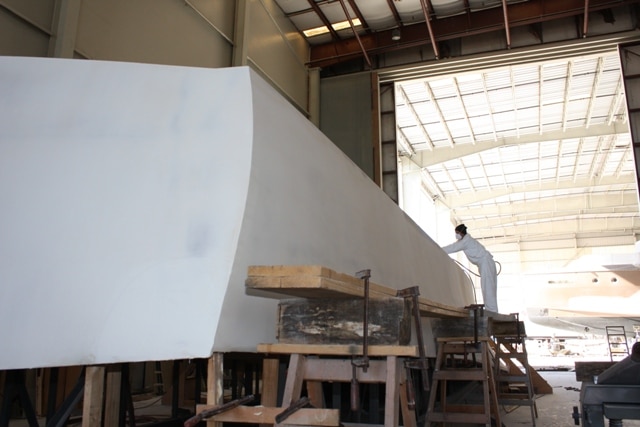

Hull fairing is underway.
The lower deck sole is ready for fitting.

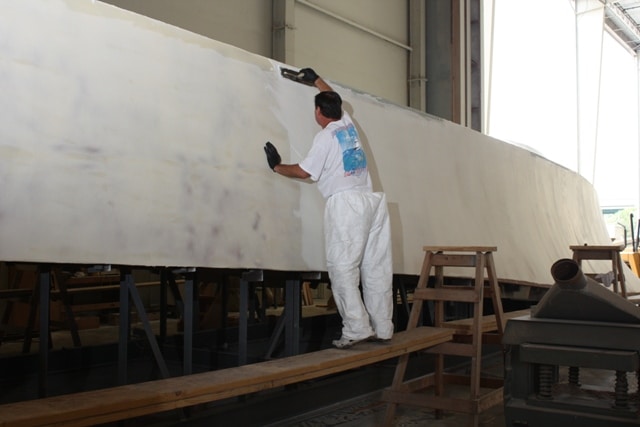

Hull fairing continues.

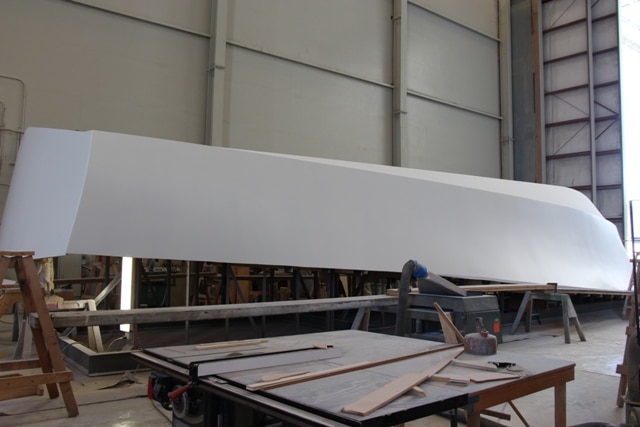

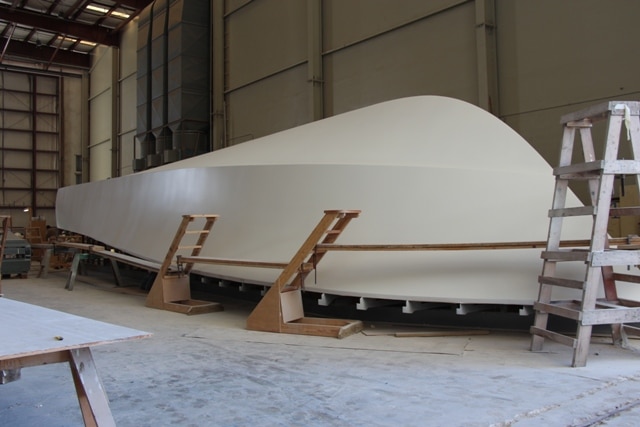

Hull is in primer stage.

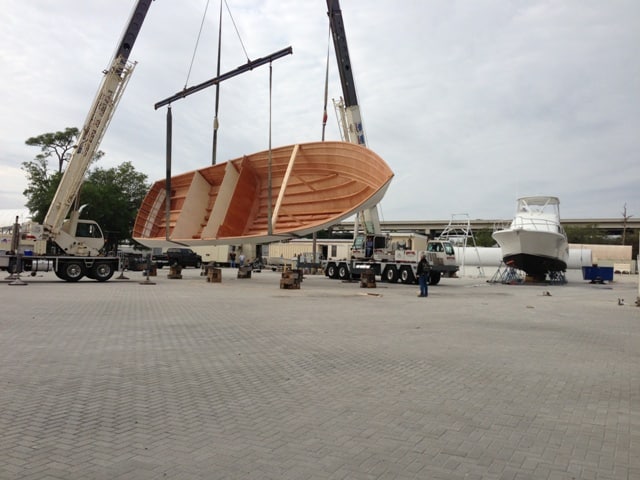

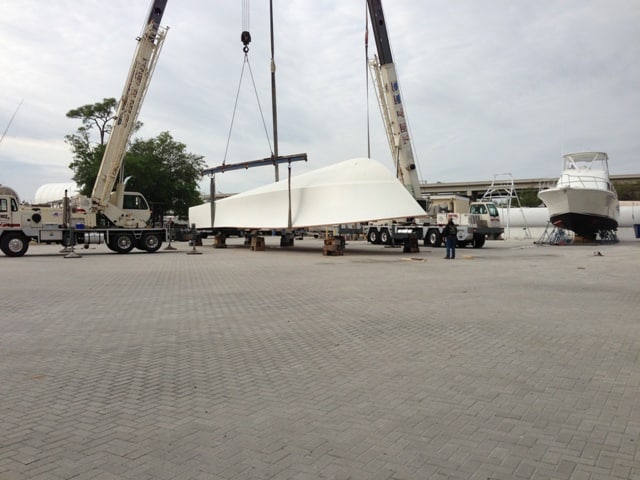

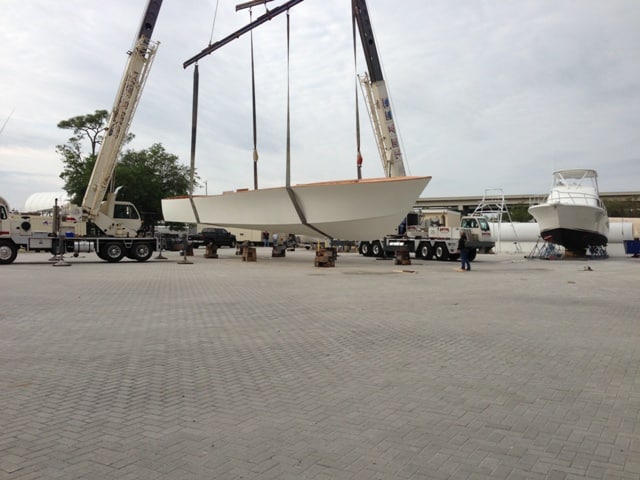

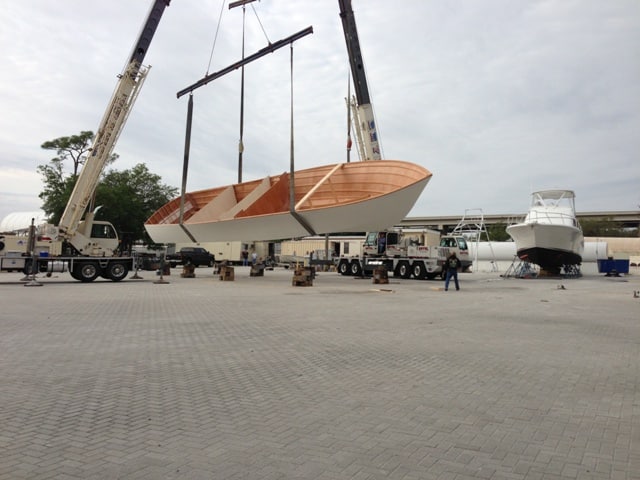

Hull is rolled over.

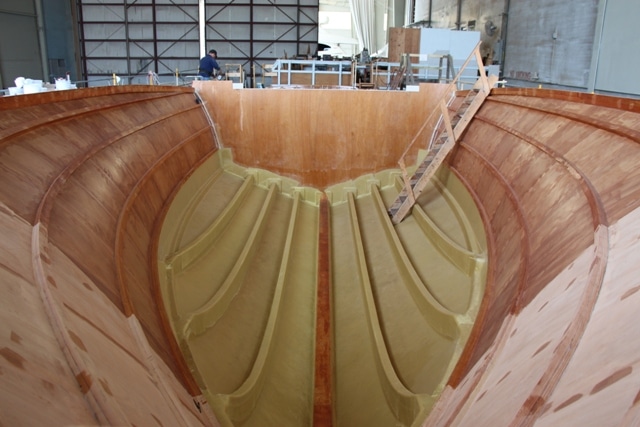

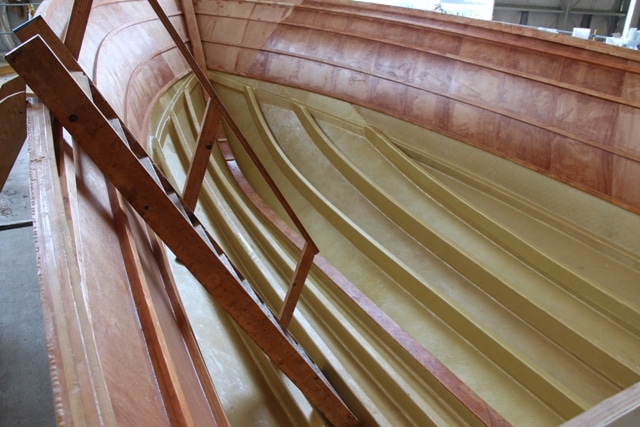

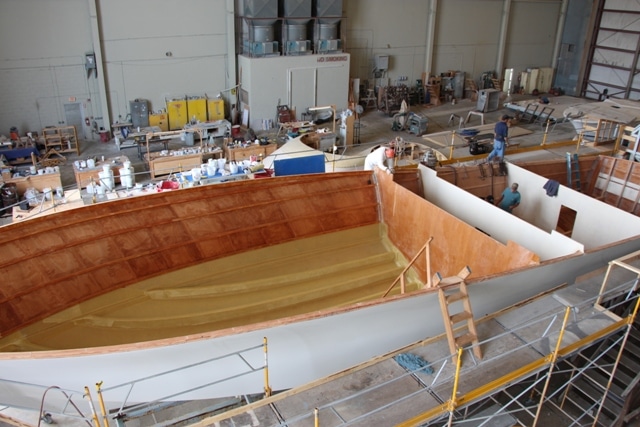

The inner hull is reinforced with Kevlar while the engine bed stringers are built up with additional deadwood.
