Jarrett Bay 67-foot Privateer

Follow the build of Jarrett Bay's throwback to the classic trunk cabin design in their hull No. 63
jarrett bay 67 foot sport fisherman boat build

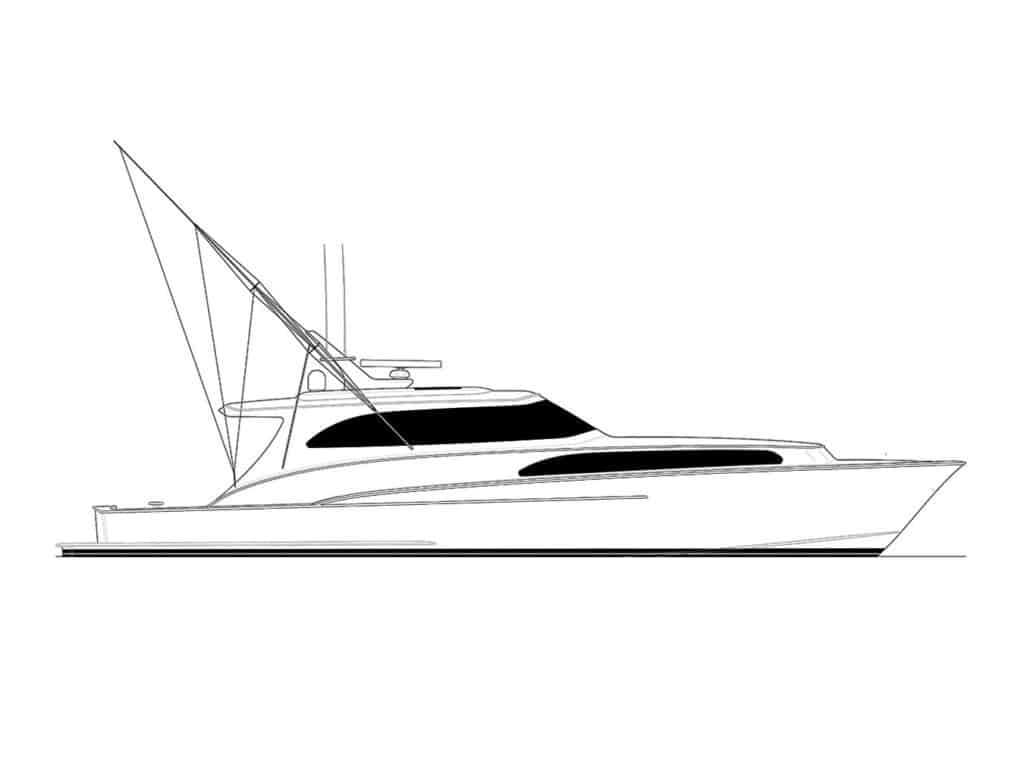

With Jarrett Bay’s newest build for 2016, the 67-foot sport-fisherman will combine a nostalgic feel and throwback trunk cabin design with the modern performance, technology and amenities the brand is known for. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

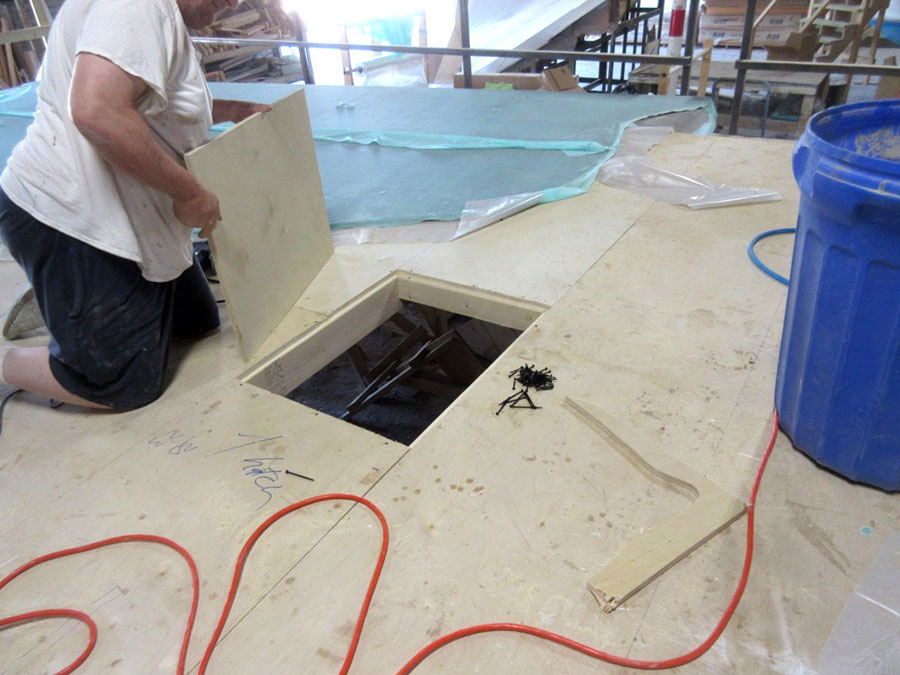

Access hatches are installed in the strongback for accessing the inside of the hull for tabbing prior to the flip. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The strongback is assembled and planked. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Framing the strongback structure to be true for construction accuracy. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The strongback frame measures 55 feet long, 6 feet tall and 12 feet wide. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The stations are going up. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

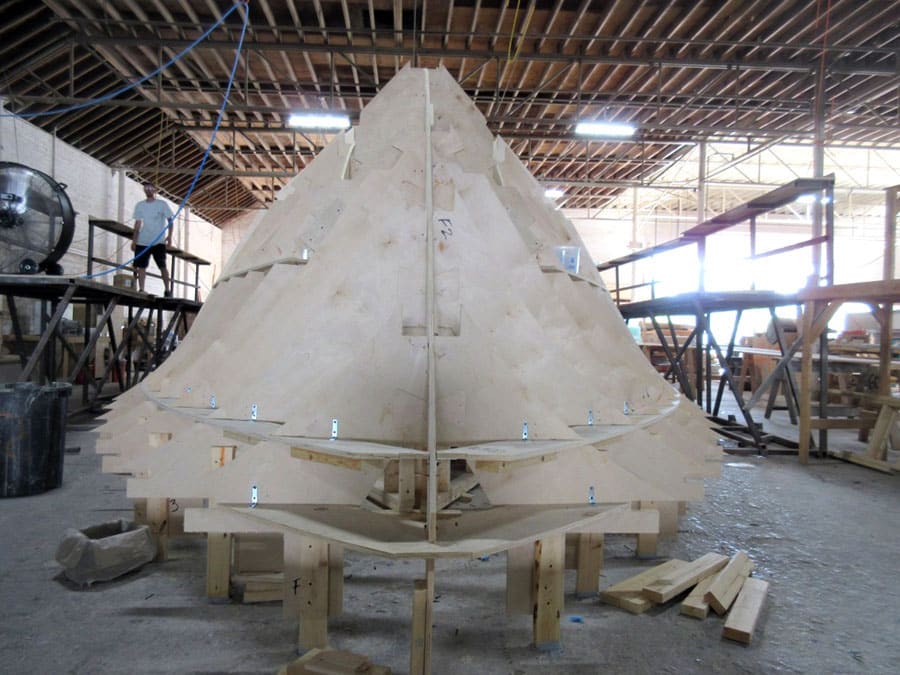

All the stations are laid out and precisely aligned. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

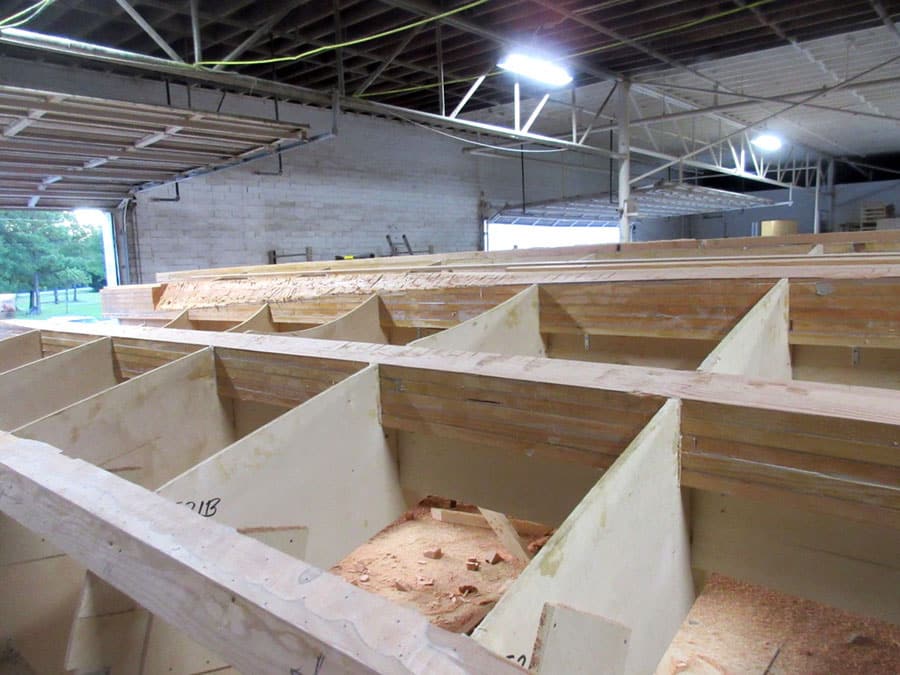

The bulkheads are being inserted into the sequence of stations. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The stringers are being shaped in the prop tunnel. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

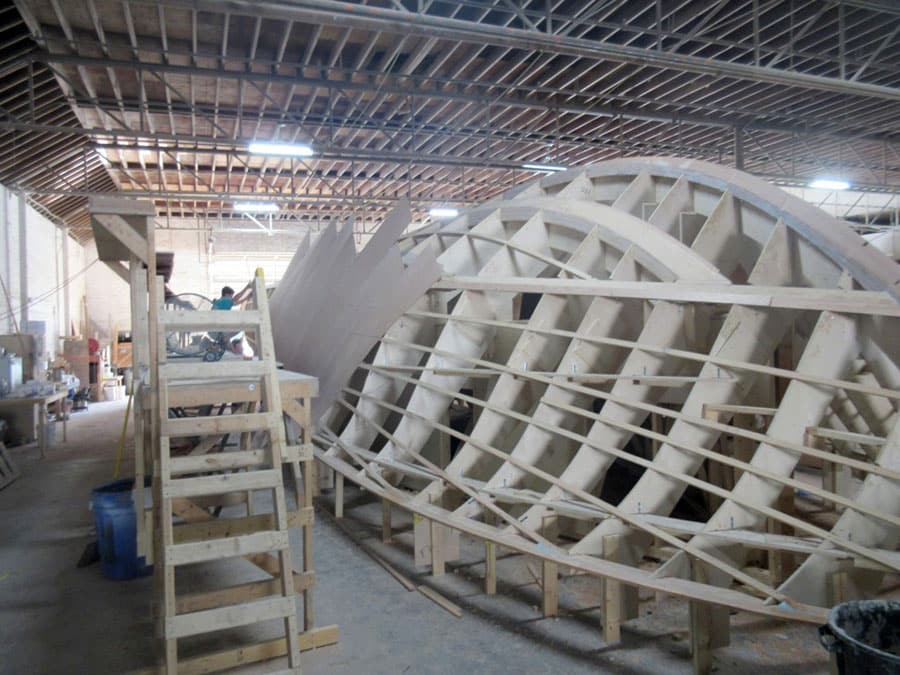

The stringers, shear banding, chine and rib bands have all been shaped and laminated. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

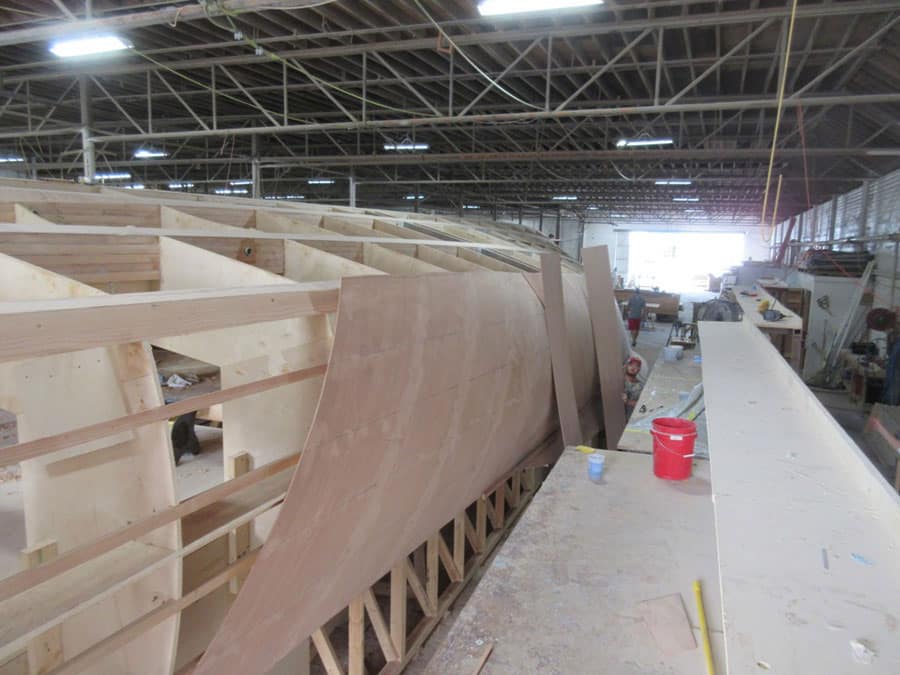

Dry-fitting the planking has begun. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

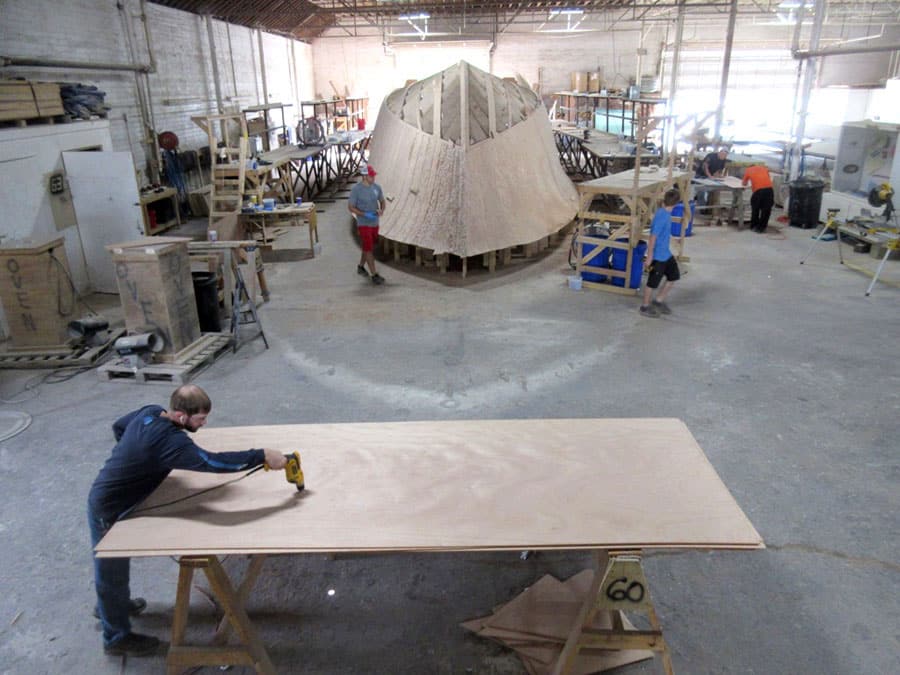

The second and third layer of planking is perforated to allow the glue to squeeze out and to prevent air pockets from getting trapped between the layers. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Second layer of planking is installed. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

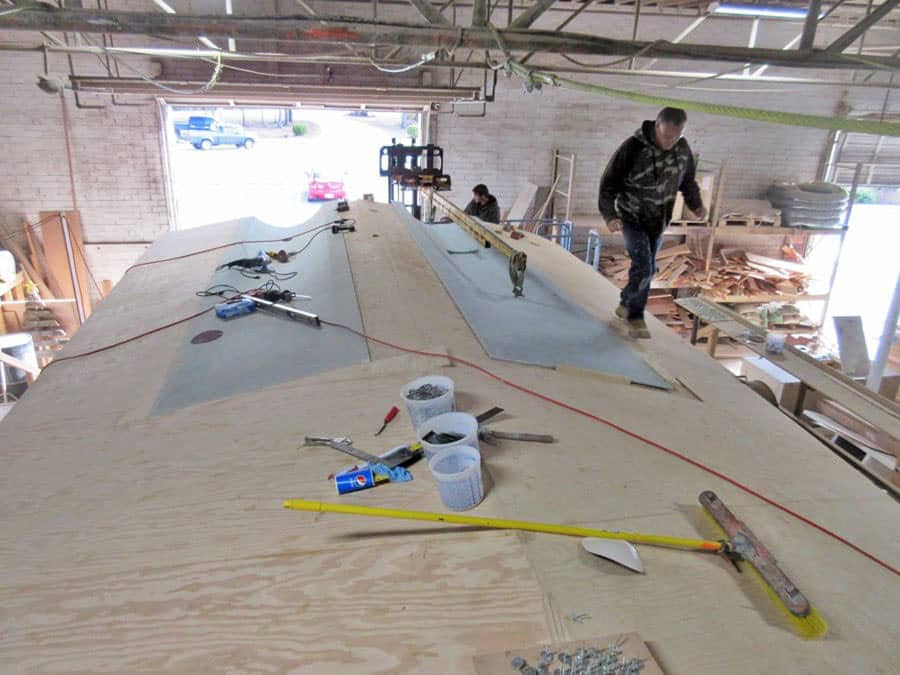

The first sheets of bottom planking are glued down. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Tunnel molds are installed. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Hull 63 owners install the final plank on the hull under the supervision of Gary Davis. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

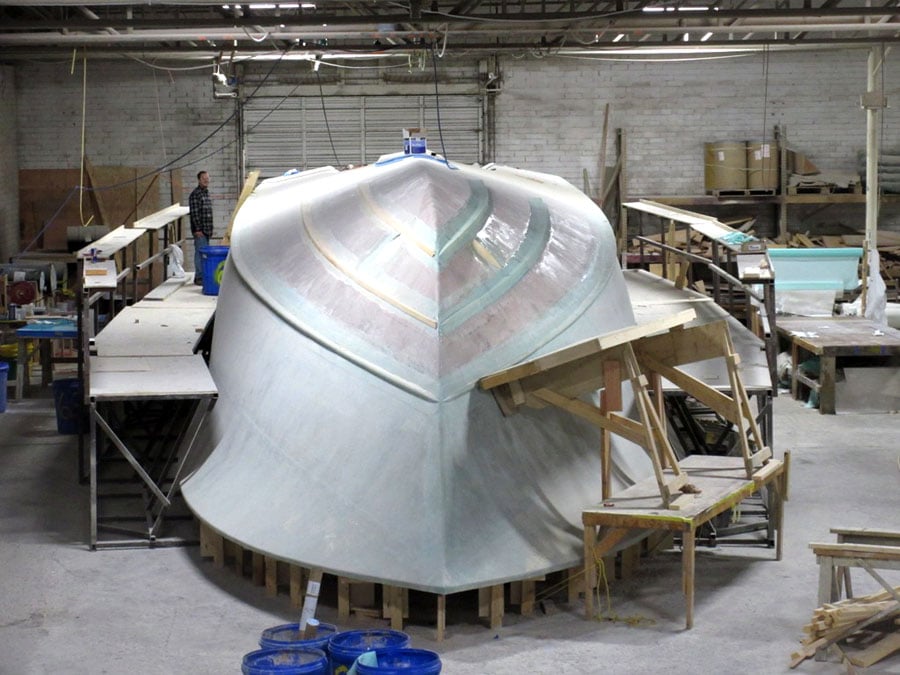

The bottom glass work is complete and side glass work begins. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Chine spray rail is completed and glassed and spray strakes shaped and glued on ready for glass. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The hull is fully glassed, sanded and the bottom is faired. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

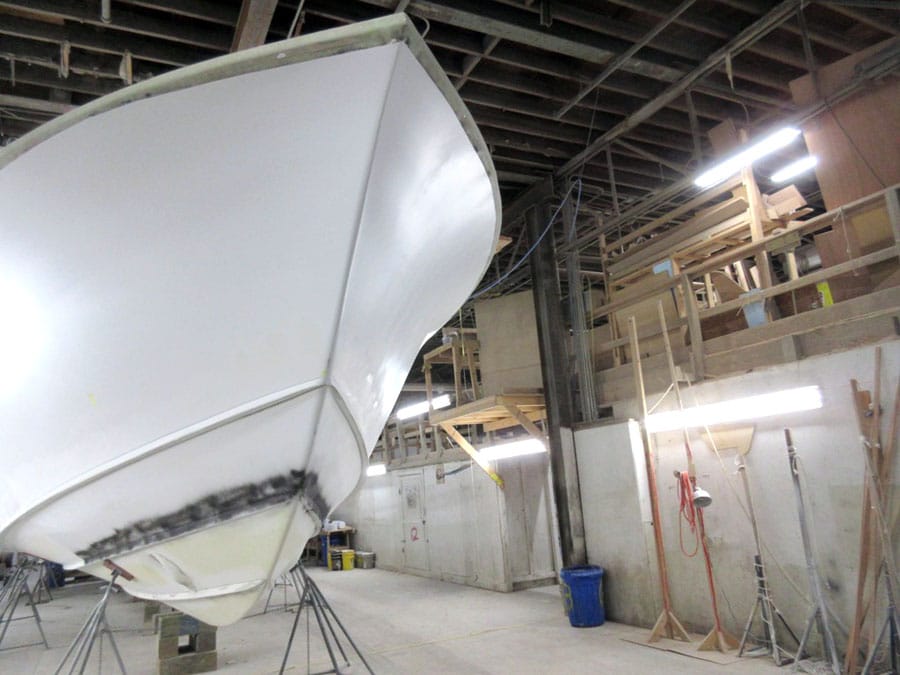

The hull exterior is primed in anticipation of the roll over. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

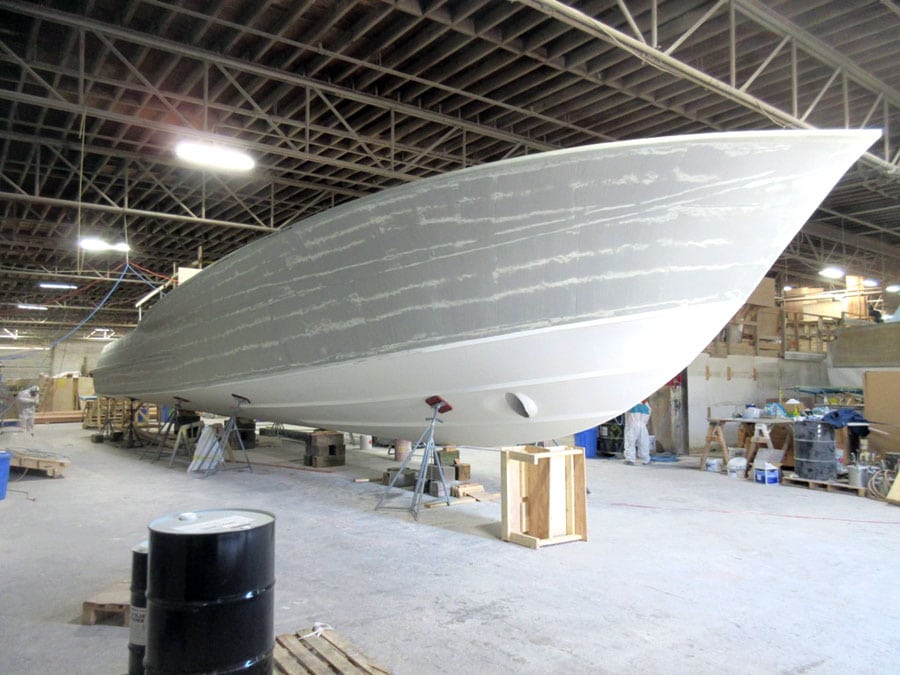

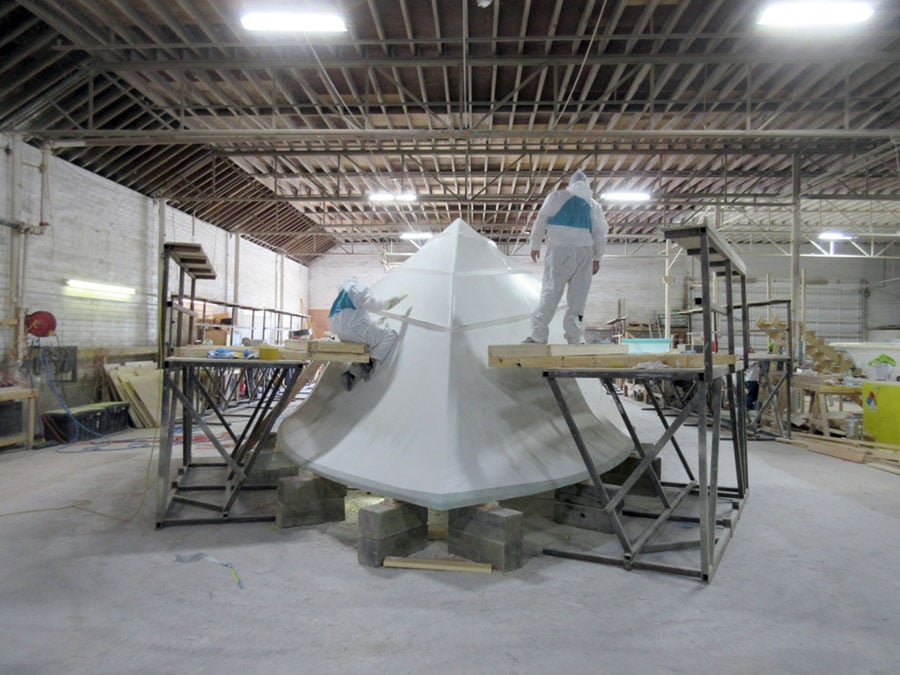

The painters are on their second skim of fairing on the hull sides. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Stick framing is set up to create a template for the down forward bulkheads. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The painters are on their second skim of fairing on the hull sides. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

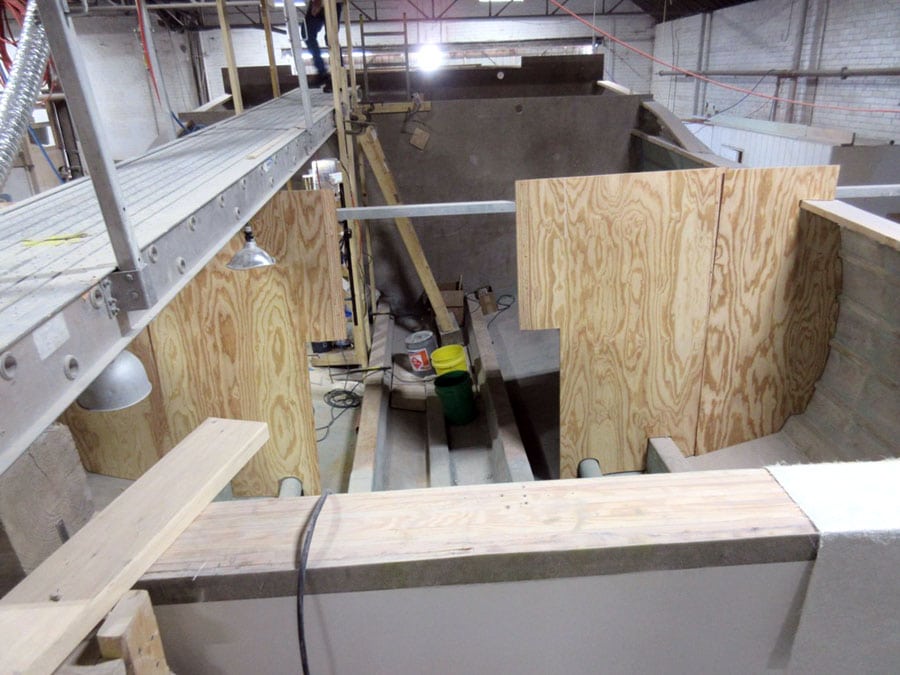

Bulkheads are installed throughout the boat. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Forward quarters floor deck beams are dry fitted in place. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

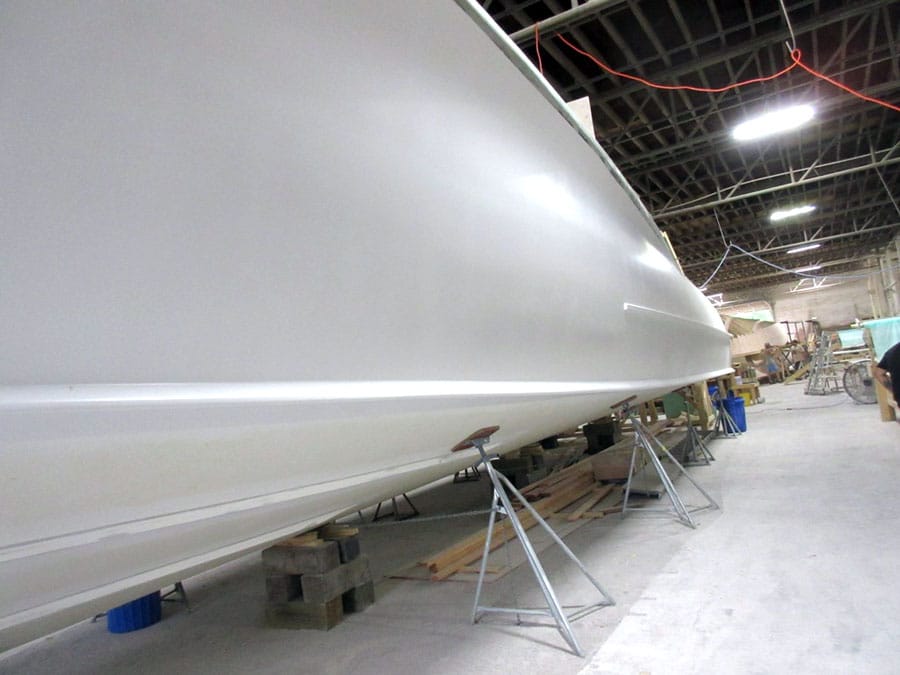

Hull is faired and primed up to the point of top coat. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

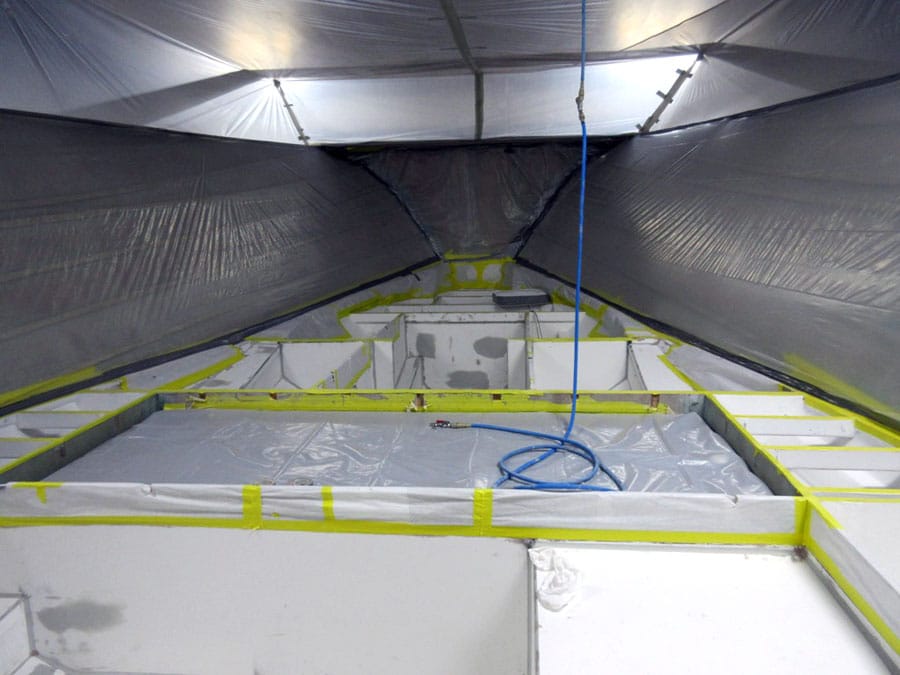

Down forward bilge areas are nearly ready for paint. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Up forward is prepped for final coat of primer. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

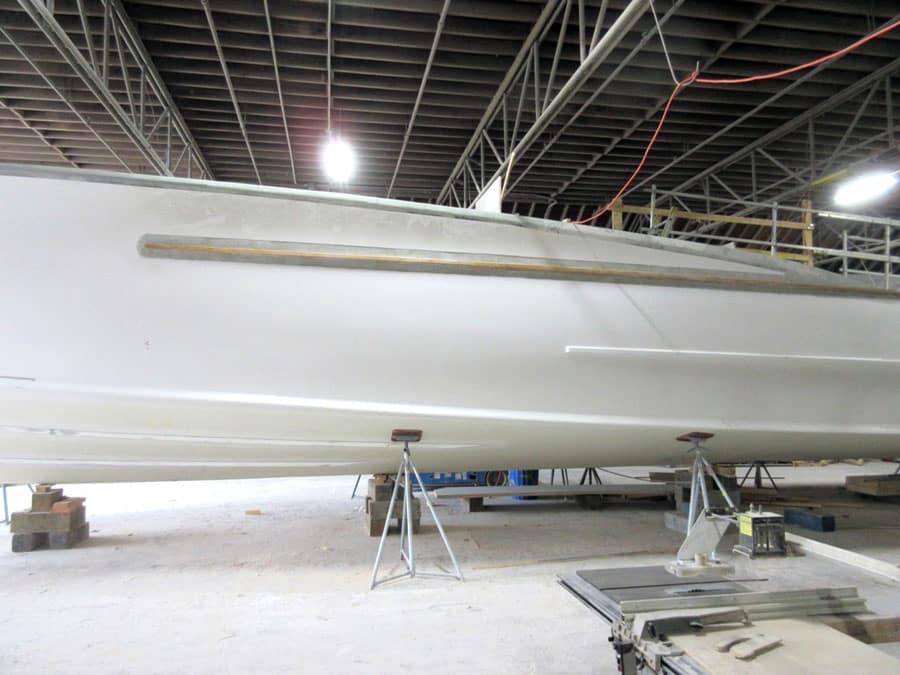

Intermediate bumpers are taking shape on the hull. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Forward fuel tank is permanently installed and deck beams are installed over it. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The swim platform is installed and glassed. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

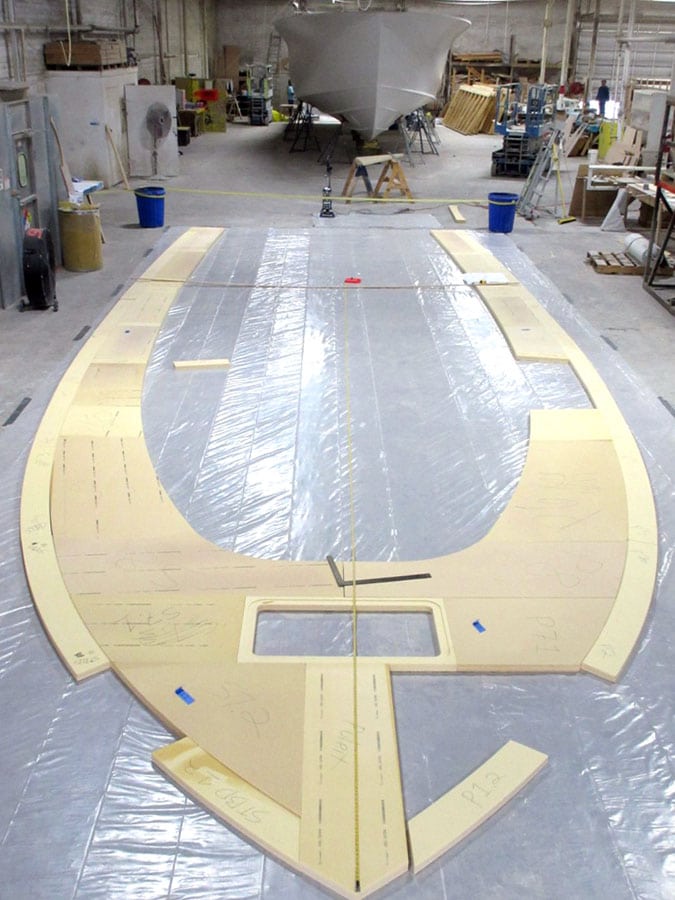

The composite foredeck “jigsaw puzzle” is laid out and prepped for fiberglass. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
The hull has been moved to station 3 adjacent to the carpenter’s loft for the next phases of construction. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build
Infused foredeck is placed for the final fitting before installation. Courtesy Jarrett Bay Boatworks
jarrett bay 67 foot sport fisherman boat build

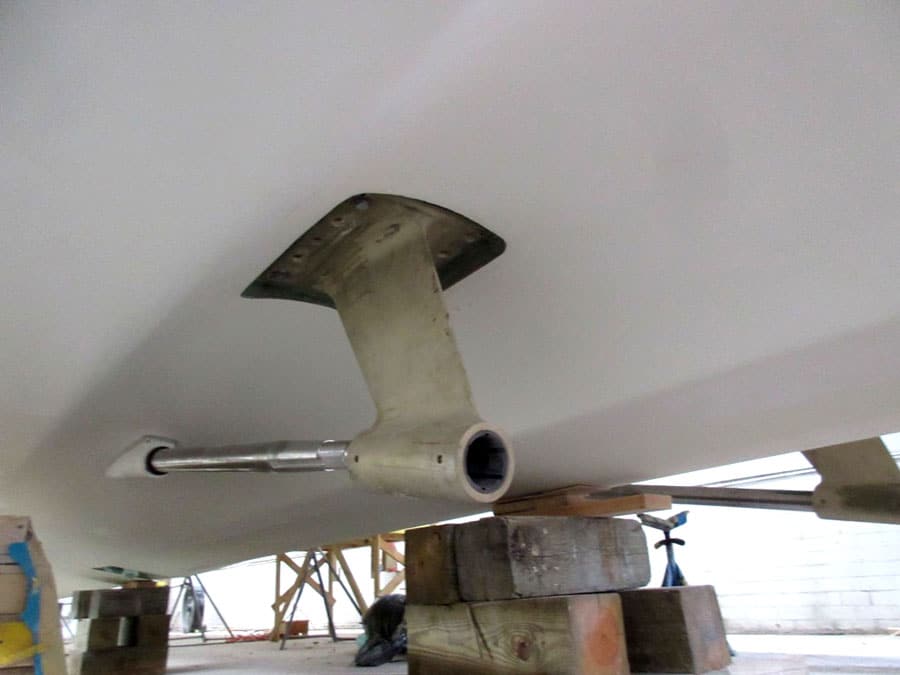

Prop shaft struts are aligned and bedded, awaiting final installation. Courtesy Jarrett Bay Boatworks
